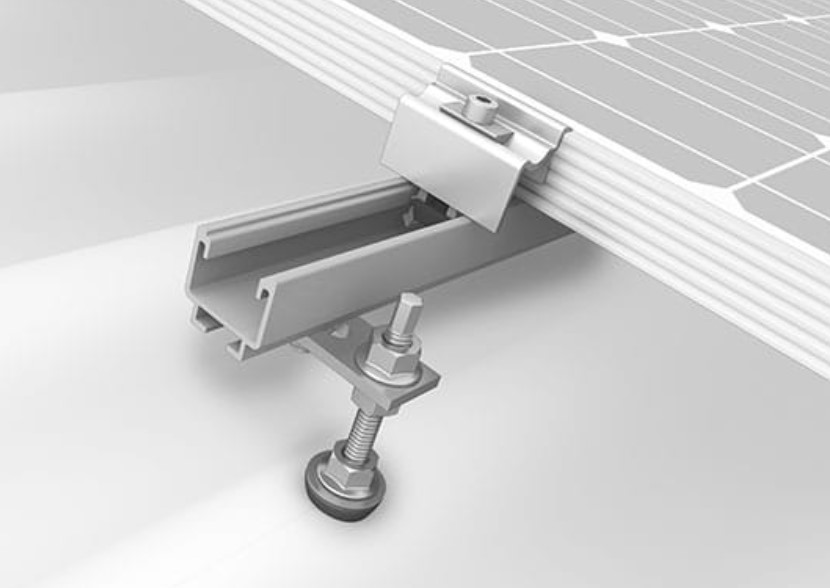

Rafter Solar Panel Fixing Kits Our rafter solar panel fixing kits provide a secure mounting solution for installing solar panels on suitable roofs where the mounting system is fixed directly into timber rafters or wooden purlins. Kits are available for different panel quantities and roof applications.
Our Rafter Fixing Kits provide a sturdy mounting solution for attaching solar panels to corrugated or other suitable roof coverings where the fixing system is secured into timber rafters or wooden purlins.
These kits are designed to screw into the timber roof structure and provide the components required to create a solar panel mounting system using our standard aluminium solar PV rails.
The kits are available for installations from 1 panel up to 8 panels in one row.
Complete Solar Rafter Fixing Kits
Each kit contains the main components required to mount solar panels onto a suitable timber rafter or purlin roof.
The fixing system can include:
Rafter screw fixing sets
Rafter/top-plate brackets
Aluminium solar PV rails
Rail joiners where required
T bolts and nuts
Solar panel mid clamps
Solar panel end clamps
Please advise the solar panel frame thickness when ordering so that the correct mid and end clamps can be supplied.
Solar Panel Rafter Fixing Kits
Our standard kits are available from:
1 panel
2 panels
3 panels
4 panels
5 panels
6 panels
7 panels
8 panels
The standard configurations are designed for solar panels installed in one row.
The fixing kits have been calculated using a 650mm rafter spacing.
If your roof has a different rafter spacing, please contact us before ordering so that the fixing requirements can be checked.
Solar Panels in Portrait Orientation
The rafter fixing system can be used to mount solar modules in a portrait orientation using the aluminium PV support rails.
The rails are secured to the roof structure using the appropriate rafter fixing components, with the solar panels then secured to the rails using the correct mid and end clamps.
Rafter Fixing Kit Components
Component
Purpose
Rafter screw set
Secures the mounting system to the timber roof structure
Rafter/top-plate brackets
Connect the roof fixing to the solar PV rails
Aluminium PV rails
Support the solar panels
Rail joiners
Join rails where additional rail length is required
T bolts and nuts
Secure mounting components to the rails
Mid clamps
Secure adjacent solar panels
End clamps
Secure the outer solar panels
Cable clips
Secure solar cables to the mounting system
Related Solar PV Fixing Components
Individual components are also available if you need to build or extend your own solar panel mounting system:
Rafter Fixing Kits
£88.49 – £521.38Price range: £88.49 through £521.38
Rafter Solar Panel Fixing Kits
Our rafter solar panel fixing kits provide a secure mounting solution for installing solar panels on suitable roofs where the mounting system is fixed directly into timber rafters or wooden purlins. Kits are available for different panel quantities and roof applications.
Description
Rafter Fixing Kits for Corrugated & Timber Roofs
Our Rafter Fixing Kits provide a sturdy mounting solution for attaching solar panels to corrugated or other suitable roof coverings where the fixing system is secured into timber rafters or wooden purlins.
These kits are designed to screw into the timber roof structure and provide the components required to create a solar panel mounting system using our standard aluminium solar PV rails.
The kits are available for installations from 1 panel up to 8 panels in one row.
Complete Solar Rafter Fixing Kits
Each kit contains the main components required to mount solar panels onto a suitable timber rafter or purlin roof.
The fixing system can include:
Please advise the solar panel frame thickness when ordering so that the correct mid and end clamps can be supplied.
Solar Panel Rafter Fixing Kits
Our standard kits are available from:
The standard configurations are designed for solar panels installed in one row.
The fixing kits have been calculated using a 650mm rafter spacing.
If your roof has a different rafter spacing, please contact us before ordering so that the fixing requirements can be checked.
Solar Panels in Portrait Orientation
The rafter fixing system can be used to mount solar modules in a portrait orientation using the aluminium PV support rails.
The rails are secured to the roof structure using the appropriate rafter fixing components, with the solar panels then secured to the rails using the correct mid and end clamps.
Rafter Fixing Kit Components
Related Solar PV Fixing Components
Individual components are also available if you need to build or extend your own solar panel mounting system:
Solar Panels
If you also require solar modules, browse our Solar Panels range.
Solar PV Rafter Fixing Kits UK
Solar PV Systems supplies rafter fixing kits and solar panel mounting components across the UK.
Our rafter fixing kits are supplied as equipment packages. We do not provide installation services.
