£143.83–£897.66Price range: £143.83 through £897.66
Plain Tile Solar PV Fixing Kits
Our Plain Tile Solar PV Fixing Kits are designed for mounting solar panels on suitable roofs covered with traditional plain tiles.
Kits are available for different numbers of panels and portrait or landscape configurations. The selected kit provides the fixing components required to connect the solar panels to the PV mounting rail system.
Please check that the roof construction and tile type are suitable before ordering. Solar panels and installation are not included.
Our Plain Tile Solar PV Roof Fixing Kits are designed for mounting solar panels securely onto suitable plain tiled roofs.
These complete on-roof solar fixing kits combine the roof brackets, protective flashing, aluminium PV rails, stainless steel fixings and solar panel clamps required for a standard solar panel mounting system.
The plain tile bracket design is particularly suited to roofs using thin traditional plain tiles, where the bracket needs to sit clear of the tile to help reduce the risk of tile damage.
Complete Plain Tile Solar Fixing Kits
Our plain tile solar fixing kits are available in different panel quantities and configurations.
We offer standard kits from 1 panel through to 8 panels in one row, providing a convenient way to select the main mounting components required for a small solar PV installation.
The kits can be used for solar panels installed in portrait or landscape configurations, subject to the selected mounting arrangement.
Plain Tile Roof Solar Panel Fixings

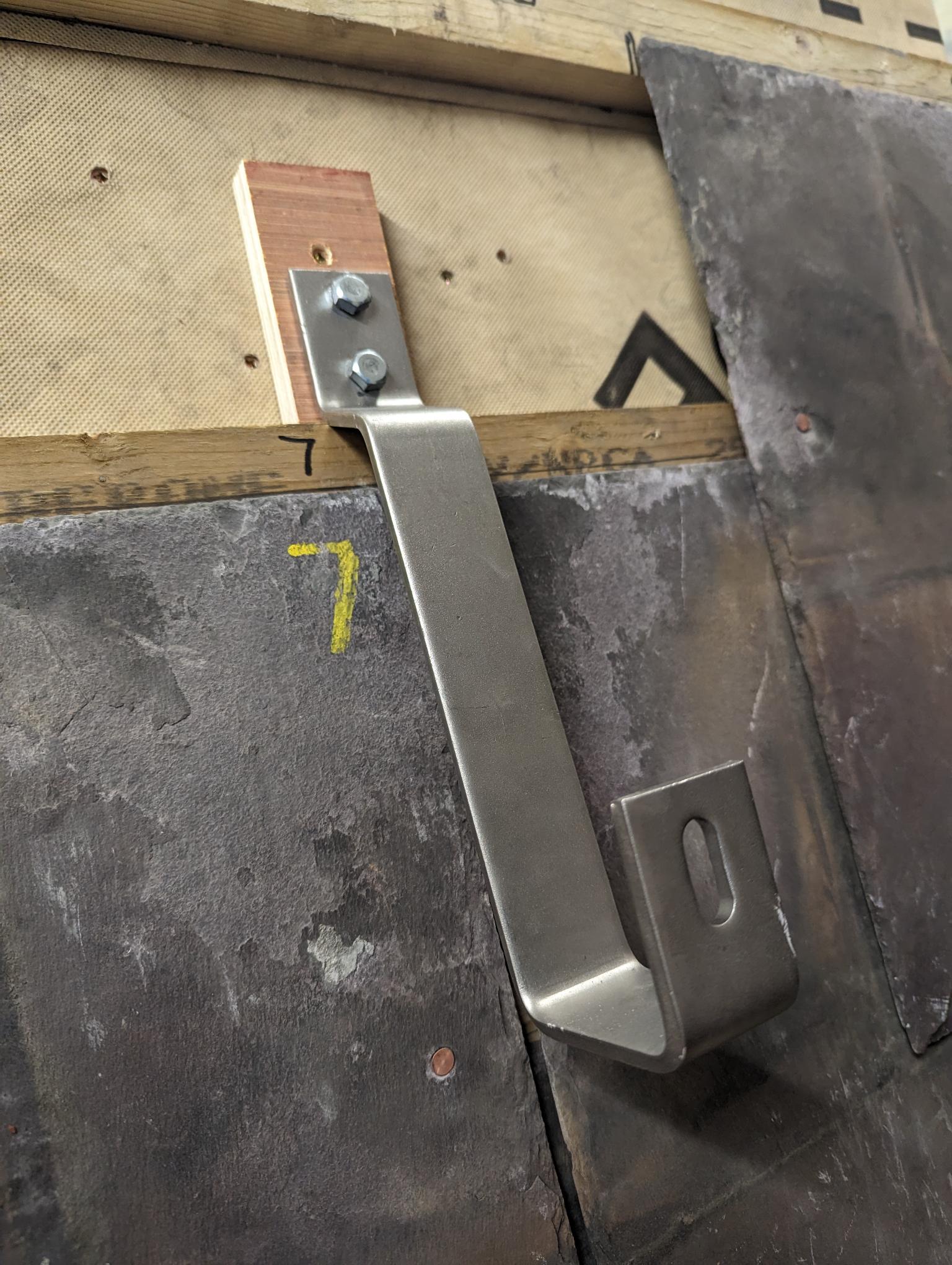

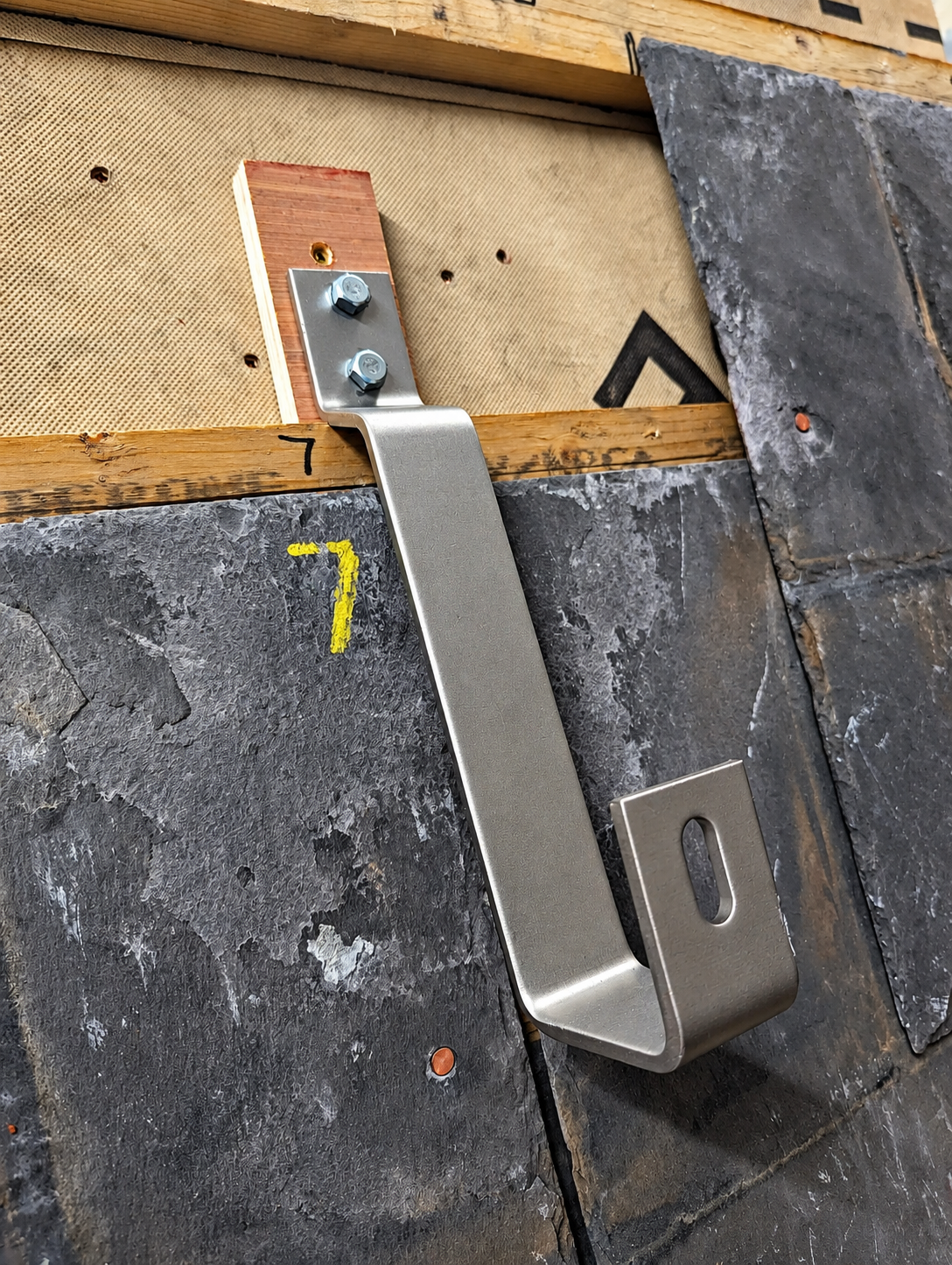

The plain tile fixing system uses purpose-designed roof brackets that attach to the roof structure beneath the tiles.
The bracket incorporates a dog-leg design, allowing the fixing to sit clear of the surrounding tiles. This is particularly useful on roofs with thinner plain tiles.
The kits also include protective flashing where specified, helping provide a weather-resistant detail around the roof fixing.
These fixing systems can also be suitable for some man-made slate roof coverings. Please contact us if you are unsure whether the fixing is suitable for your particular roof.
650mm Rafter Spacing
Our standard plain tile fixing kits are calculated using 650mm rafter spacing.
If your roof has a different rafter spacing, please advise us before ordering so that the fixing requirements can be checked.
What’s Included in our kits
A typical plain tile solar PV fixing kit can include:
The exact components supplied depend on the panel quantity and selected kit configuration.
Solar Panel Clamps
The correct mid and end clamps should be selected to match the frame thickness of your solar panels.
Our panel clamps are available in different sizes and finishes, including silver and black, allowing the mounting system to be matched to the solar modules.
Please provide the solar panel frame thickness when ordering if you are unsure which clamp size is required.
Solar PV Systems
Solar PV Systems supplies solar panel mounting equipment and solar PV fixing kits across the UK.
We supply the equipment and technical information for customers undertaking their own solar projects or working with their chosen installer. We do not provide installation services.
Plain Tile Fixing Kits
£143.83 – £897.66Price range: £143.83 through £897.66
Plain Tile Solar PV Fixing Kits
Our Plain Tile Solar PV Fixing Kits are designed for mounting solar panels on suitable roofs covered with traditional plain tiles.
Kits are available for different numbers of panels and portrait or landscape configurations. The selected kit provides the fixing components required to connect the solar panels to the PV mounting rail system.
Please check that the roof construction and tile type are suitable before ordering. Solar panels and installation are not included.
Description
Our Plain Tile Solar PV Roof Fixing Kits are designed for mounting solar panels securely onto suitable plain tiled roofs.
These complete on-roof solar fixing kits combine the roof brackets, protective flashing, aluminium PV rails, stainless steel fixings and solar panel clamps required for a standard solar panel mounting system.
The plain tile bracket design is particularly suited to roofs using thin traditional plain tiles, where the bracket needs to sit clear of the tile to help reduce the risk of tile damage.
Complete Plain Tile Solar Fixing Kits
Our plain tile solar fixing kits are available in different panel quantities and configurations.
We offer standard kits from 1 panel through to 8 panels in one row, providing a convenient way to select the main mounting components required for a small solar PV installation.
The kits can be used for solar panels installed in portrait or landscape configurations, subject to the selected mounting arrangement.
Plain Tile Roof Solar Panel Fixings
The plain tile fixing system uses purpose-designed roof brackets that attach to the roof structure beneath the tiles.
The bracket incorporates a dog-leg design, allowing the fixing to sit clear of the surrounding tiles. This is particularly useful on roofs with thinner plain tiles.
The kits also include protective flashing where specified, helping provide a weather-resistant detail around the roof fixing.
These fixing systems can also be suitable for some man-made slate roof coverings. Please contact us if you are unsure whether the fixing is suitable for your particular roof.
650mm Rafter Spacing
Our standard plain tile fixing kits are calculated using 650mm rafter spacing.
If your roof has a different rafter spacing, please advise us before ordering so that the fixing requirements can be checked.
What’s Included in our kits
A typical plain tile solar PV fixing kit can include:
The exact components supplied depend on the panel quantity and selected kit configuration.
Solar Panel Clamps
The correct mid and end clamps should be selected to match the frame thickness of your solar panels.
Our panel clamps are available in different sizes and finishes, including silver and black, allowing the mounting system to be matched to the solar modules.
Please provide the solar panel frame thickness when ordering if you are unsure which clamp size is required.
Solar PV Systems
Solar PV Systems supplies solar panel mounting equipment and solar PV fixing kits across the UK.
We supply the equipment and technical information for customers undertaking their own solar projects or working with their chosen installer. We do not provide installation services.
