Solar Pump Station Connectors

Description

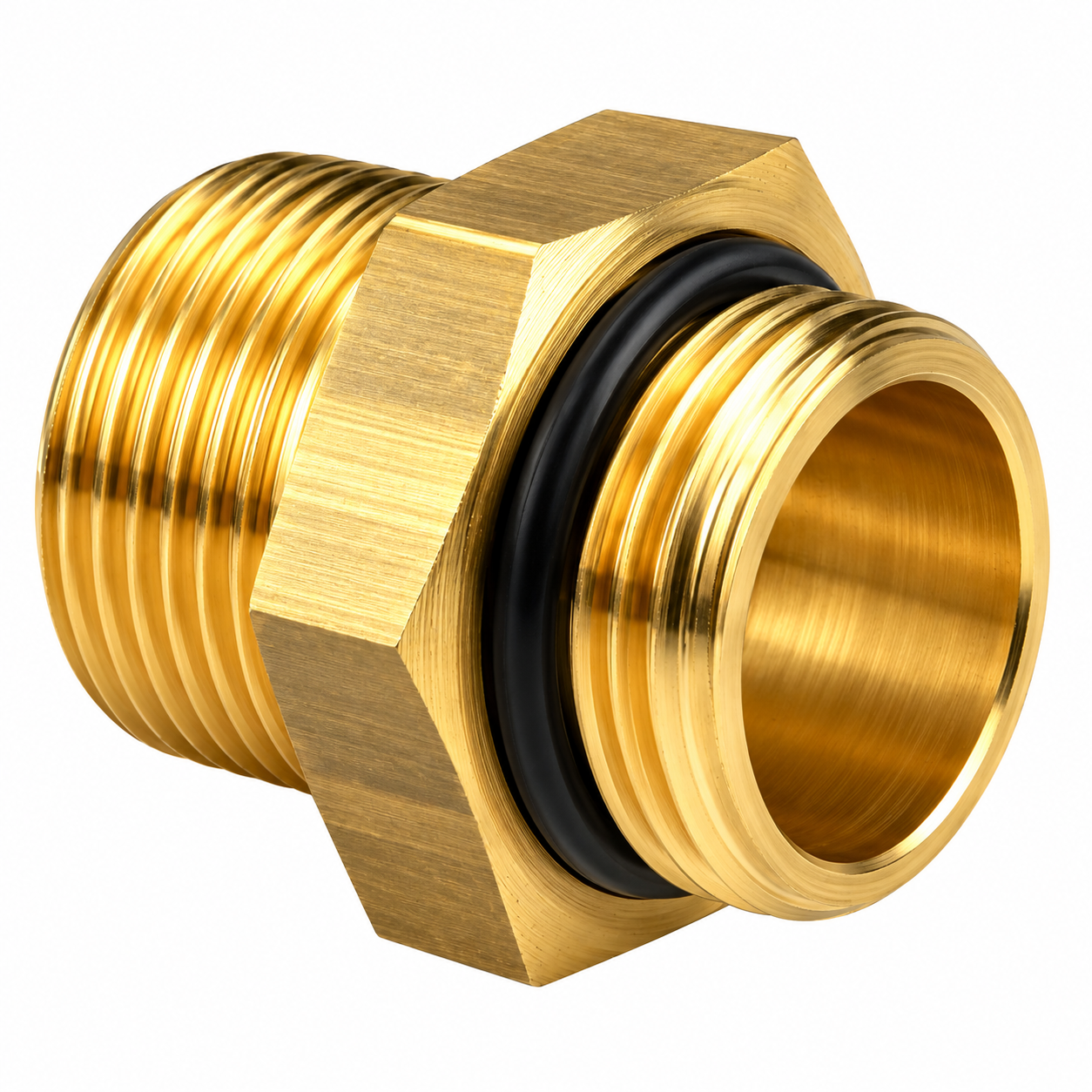

Solar Pump Station Connectors – DN12 & DN16

Solar pump station connectors are used to connect stainless-steel flexible solar pipework to solar thermal pump stations. Available in DN12 and DN16 sizes, these connectors provide secure mechanical connections for pressurised glycol solar thermal systems.

Each connector is supplied with an O-ring sealing washer to help create a reliable seal and reduce the risk of fluid leaks or pressure loss from the connection.

DN12 & DN16 Solar Pump Station Connections

These connectors are designed for use when installing, servicing or replacing connections between flexible solar pipework and a solar pump station.

The O-ring should be checked when servicing the connection and replaced if damaged, worn or compressed. The connector and mating surfaces should also be inspected before reassembly to help maintain a secure, watertight connection.

For related flexible pipework components, see the Solar C Clips, Solar Pipework Fibre Washers and Flexible Solar Tube Connection Sets.

Solar Thermal Pump Station Pipework

Solar pump station connectors are suitable for high-pressure glycol solar thermal systems and are available to match DN12 and DN16 flexible stainless-steel solar pipework.

For other solar thermal pipework fittings and components, see the Solar Heating range.
