DBS161 and DBS 155 solar PV powered lighting system designed to provide PIR illumination activated by pedestrians. Lights will stay illuminated for as long as pedestrians are within 10m radius of the light. When pedestrian traffic has moved away the lights will provide 100% illumination for several minutes and then go into a 30% standby mode until reactivated. Lights are powered by a li-ion battery pack and PV panels are included as an all in one solution. These are available in 60w and 100w versions for the UK market.
We can set these to provide several different illumination settings, please ask for full details.

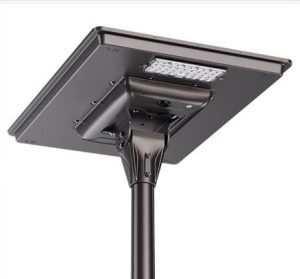

CLAMP ON One piece DBS161 solar lights
are designed to be retro fitted onto existing columns or post to provide illumination for back streets. Lights provide power through a series of controls that are optimized from the previous day’s sun light. This is designed to harvest as much as possible from the available sun light available. A solar panel produces electrical power when the available sun light at location can shine adequately onto the solar panel surface.
DBS161 specification
One piece solar lights | Retro fit | Illumination for streets
Our aim to offer you specifications and prices based on your requirements, please advice details of your needs. We can then provide you the correct information by return. These simple one piece retro fit solar street lights, are PV charged every day to provide energy into the lithium battery pack. Light is then available after dark, balanced through a PIR motion detector. These will continue to operate without the need for mains power supplies.
These are sold for self installation use.
They clamp onto existing 60mm lamp posts.
The prices do not include lamp posts
DBS 155 Applications for lighting
Caravan path lighting
Community
Wildlife lighting
Park lighting
Gate lighting
Walkway lighting
Un-adopted areas
Moorings & Marinas
Footpaths
Estates
Car Park lighting
Play areas
DBS 155 Specification
Solar panel: 35w | LED: 20w @ 170lw/m | Battery: 18Ah lithium | Dusk until dawn PIR detection | Mounting: 60mm @ 2-5m
Option 1: light off until required, then when triggered will stay on for 60 seconds | Option 2: light on @ 5% background until triggered will stay on for 60 seconds | Option 3: light off until required, then when triggered will stay on for 120 seconds | Option 4: light on @ 5% background until triggered will stay on for 120 seconds | Option 5: light on 100% for 3 hours, then reverts to 50% light for 60 seconds if triggered | Option 6: light on 50% for 3 hours, then reverts to 50% light for 60 seconds if triggered | Option 7: light on 100% for 1 hour then off, not triggered by sensor | Option 8: light on 100% for 2 hours then off, not triggered by sensor | Option 9: light on 80% for 3 hours then off, not triggered by sensor | Option 10: light on 50% for 4 hours then off, not triggered by sensor
