Rafter Fixing plates

Description

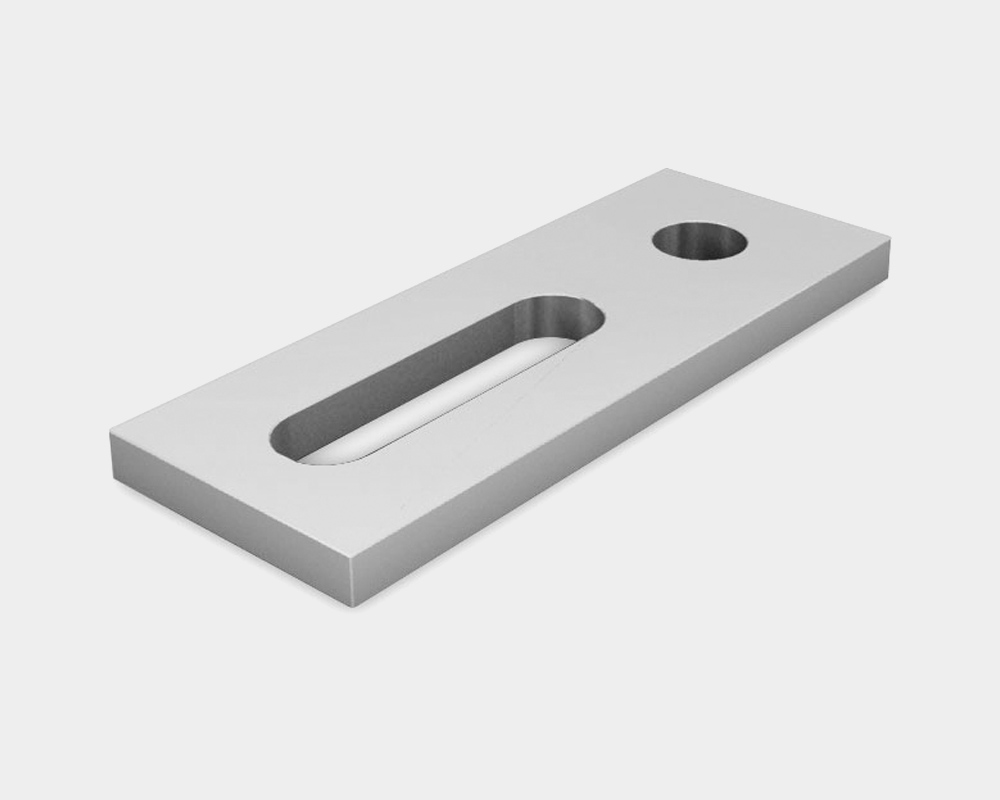

Rafter Fixing Plates – Solar PV Roof Rail Support

Our Rafter Fixing Plates are steel mounting components used with suitable rafter and girder fixing arrangements to support solar PV roof rails.

The plates provide a connection point for attaching the solar PV rail to the appropriate rafter fixing system.

Steel Rafter Plates

The rafter plates are manufactured from high-grade steel and are pre-drilled to provide M10 thread clearance.

They are supplied as a spare part for solar PV mounting systems using compatible rafter fixing components.

Solar PV Rafter Fixing

Rafter fixing plates can be used as part of a complete rafter-mounted solar PV system.

For the corresponding rafter fixing component, see our:

Rafter Screw Set

The rafter fixing plate can then be used with suitable rail fixing components to support the solar PV mounting rail.

Solar PV Rail Connection

For the mounting rail, see our:

PV Roof Rail

For the rail fixing connection:

M10 Solar Rail T Bolt

M10 Serrated Nut

These components form part of the mechanical connection between the rafter fixing arrangement and the solar PV mounting rail.

Complete Rafter Solar Fixing Systems

For customers looking for a complete system rather than an individual spare component, see our:

Rafter Roof Fixing Kits

These kits provide a complete solar PV mounting solution for suitable rafter and corrugated roof applications.

Solar PV Systems

Solar PV Systems supplies stainless steel rafter fixing plates, solar PV rails and roof mounting components across the UK.

We supply equipment and technical information for customers undertaking their own solar projects or working with their chosen installer. We do not provide installation services.
